分类:连接器产品

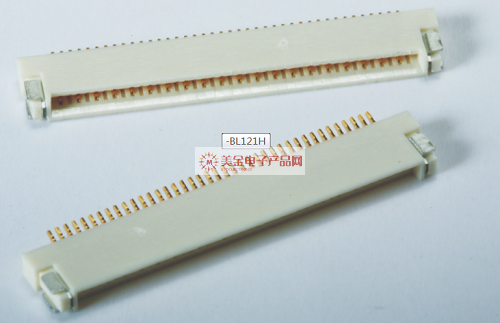

SUNCAGEY|SUNCAGEY连接器|台湾日慎精工BL121H系列0.5mm间距FPC连接器是一款:0.5mm间距,超低高度1.5毫米,无盖设计的FPC连接器,它是便携式电子产品中使用的电子连接器的更佳选择。其主要特点是:双接触点、易组装。该系列产品包含的PIN数有:4~60.
1、SUNCAGEY|SUNCAGEY连接器|台湾日慎精工BL121H系列0.5mm间距FPC连接器产品相关性能简介:
性质 Characteristic | 规格 Specifications |
连接器型式 Connector Type | Non-ZIF |
间距/Pitch (mm) | 0.5 |
高度/Height (mm) | 1.5 |
接点数量 Number of Contacts | 4~60 |
组合样式 Assembly Style | 卧式/双接触点 Right Angle / Lower Contact |
更大容许电压 Operating Voltage (Max.) | 50Vrms AC |
更大容许电流 Current Rating (Max.) | 0.4A |
使用温度范围 Operating Temperature | 零下55°C ~ +85°C(包含电流通过所产生的上升温度) (Including terminal temperature rise) |
材质-绝缘胶体 Material - Housing | L.C.P |
材质-导电端子 Material - Contacts | 磷青铜 Phosphor Bronze |
------------------------------------------------------------------------------------------------

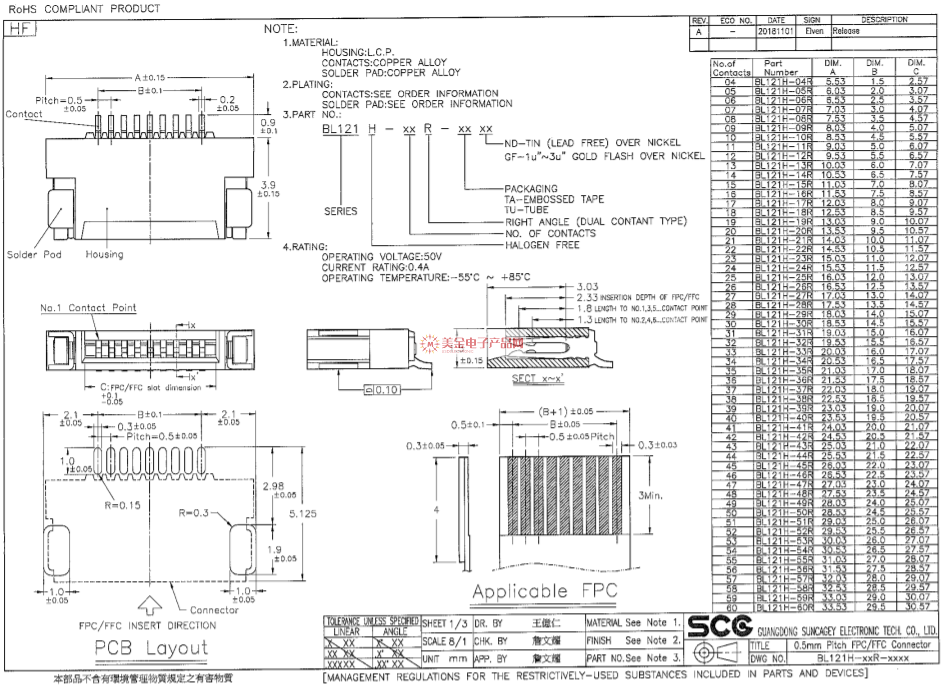

2、台湾SUNCAGEY|SUNCAGEY连接器|台湾日慎精工BL121H系列0.5mm间距FPC连接器产品图纸:
------------------------------------------------------------------------------------------------
3、台湾SUNCAGEY|SUNCAGEY连接器|台湾日慎精工BL121H系列0.5mm间距FPC连接器主要料号/型号:
BL121H-04R | BL121H-16R | BL121H-28R | BL121H-40R | BL121H-52R |
BL121H-05R | BL121H-17R | BL121H-29R | BL121H-41R | BL121H-53R |
BL121H-06R | BL121H-18R | BL121H-30R | BL121H-42R | BL121H-54R |
BL121H-07R | BL121H-19R | BL121H-31R | BL121H-43R | BL121H-55R |
BL121H-08R | BL121H-20R | BL121H-32R | BL121H-44R | BL121H-56R |
BL121H-09R | BL121H-21R | BL121H-33R | BL121H-45R | BL121H-57R |
BL121H-10R | BL121H-22R | BL121H-34R | BL121H-46R | BL121H-58R |
BL121H-11R | BL121H-23R | BL121H-35R | BL121H-47R | BL121H-59R |
BL121H-12R | BL121H-24R | BL121H-36R | BL121H-48R | BL121H-60R |
BL121H-13R | BL121H-25R | BL121H-37R | BL121H-49R | |
BL121H-14R | BL121H-26R | BL121H-38R | BL121H-50R | |
BL121H-15R | BL121H-27R | BL121H-39R | BL121H-51R |
------------------------------------------------------------------------------------------------
4、台湾SUNCAGEY|SUNCAGEY连接器|台湾日慎精工BL121H系列0.5mm间距FPC连接器 此产品销售商:
美金电子产品网-代理销售【台湾SUNCAGEY连接器|SUNCAGEY|台湾日慎精工BL121系列0.5mm间距FPC连接器】以及第3项内容中表格清单内的所有(料号/型号)连接器产品;如果您想购买或了解我们可提供哪些连接器|线束|线缆产品解决方案,欢迎通过下面方式联系我们.
