分类:连接器产品

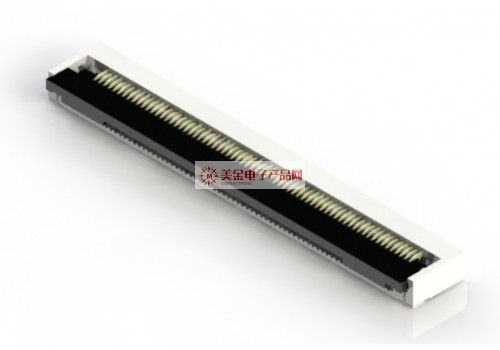

P-TWO|P-TWO连接器|台湾禾昌兴业ZIF连接器是一款:FFC / FPC连接器与FFC和FPC对接可提供零插入力(ZIF)的规格。产品还有多样型式例如掀盖、抽拉型、直立式/卧式可以满足复杂的FFC和FPC应用及操作。连接器还可以支持用于影像显示、汽车信息娱乐系统和数据通信应用的高速信号传输速度和电源。
特征 | 优点 |
1. 前掀盖、后掀盖及抽拉型式等不同盖子的设计 | 1. 可以满足复杂的FFC和FPC应用及操作 |
2. 胶芯内有凸块或凹槽设计 | 2. 提供接触点对准并增加FFC/FPC的保持力 |
3. 有可靠的讯号端子及接地端子的设计 | 3. 实现高频/高速数据传输和更好的EMI性能 |
4. 多样式的产品系列,包括间距及高度 | 4. 提供灵活的机械设计以满足客户需求 |
1、P-TWO|P-TWO连接器|台湾禾昌兴业ZIF连接器.产品相关性能简介:
材质 | 一般特性 |
1. 胶芯: 耐高温塑料UL 94 V-0 | 1. 工作温度: |
2. 後蓋: 耐高温塑料UL 94 V-0 | - 1.1 -40°C ~ +85°C |
3. 端子: 铜合金,镀金或镀锡 | - 1.2 -40°C ~ +105°C |
4. 固定片或接地端子: 不锈钢镀锡 | 2. 恒温恒湿: 40±2°C,90~95%相对湿度,持续 96小時 |
3. 盐雾: | |
- 3.1 35±2°C,5±1% 盐浓度,持续 48小時 | |
- 3.2 35+1°C/-2°C,5±1% 盐浓度,持续 48小時 | |
电气特性 | 机械特性 |
1. 额定电流: | 1. FFC/FPC 插入力: |
- 1.1 0.3mm 间距: 0.2A/pin | - 1.1 0.3mm 间距: 最小15gf/pin |
- 1.2 0.5mm 间距: 0.4 或 0.5A/pin | - 1.2 0.5mm 间距: 最小20 or 30gf/pin |
- 1.3 1.0mm 间距: 0.5A/pin | - 1.3 1.0mm 间距: 最小30gf/pin |
2. 额定电压: | 2. 插拔寿命: |
- 1.1 0.3mm 间距: 30V(AC/DC) | - 2.1 0.3mm 间距: 20次 |
- 1.2 0.5mm 间距: 50V(AC/DC) | - 2.2 0.5mm 间距: 30次 |
- 1.3 1.0mm 间距: 125V(AC/DC) | - 2.3 1.0mm 间距: 30次 |
3. 绝缘阻抗: 最小500MΩ | 3. 震动: |
4. 耐电压: 250 或 500VAC | - 3.1 1μs 更大,依据 MIL-STD-202 方法 201 |
5. 接触阻抗: | - 3.2 1μs 更大,依据 EIA 364-28 条件 I |
- 5.1 0.3mm 间距: 更大100mΩ | 4. 机械冲击: |
- 5.2 0.5mm 间距: 更大30 或 40mΩ | - 4.1 1μs 更大,依据 MIL-STD-202 方法 213 |
- 5.3 1.0mm 间距: 更大40mΩ | - 4.2 1μs 更大,依据 EIA 364-27 条件 A |
-----------------------------------------------------------------------------
2、台湾P-TWO|P-TWO连接器|台湾禾昌兴业ZIF连接器.主要料号/型号:
Product Series | Pitch (mm) | Actuator Type | Product Height (mm) | Mounting Type | Orientation | Contact Position | Soldering Type | Additional GND | Cable Lock Type | Contact Point | Automotive Application |
196640 | 0.5 | Back Flip | 1 | Top-Mount | Right Angle | Top/ Bottom | SMT | Without | Without | Single | NA |
196637 | 0.5 | Front Flip | 2.55 | Top-Mount | Right Angle | Bottom | SMT | Without | Without/External Prominence | Dual | NA |
196595 | 0.5 | Front Flip | 2.1 | Top-Mount | Right Angle | Bottom | SMT | With | Inner Notch | Dual | NA |
196657 | 0.5 | Front Flip | 2.1 | Top-Mount | Right Angle | Bottom | SMT | With | Inner Notch | Dual | NA |
196395 | 0.5 | Front Flip | 2 | Top-Mount | Right Angle | Bottom | SMT | Without | Without/External Prominence | Single | NA |
196033 | 0.5 | Front Flip | 2 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Single/Dual | NA |
196225 | 0.5 | Front Flip | 1.8 | Top-Mount | Right Angle | Bottom | SMT | Without | Without/External Prominence | Dual | NA |
196415 | 0.5 | Front Flip | 1.75 | Top-Mount | Right Angle | Bottom | SMT | Without | Without/External Prominence | Single | NA |
196570 | 0.5 | Front Flip | 1.55 | Top-Mount | Right Angle | Bottom | SMT | Without | Inner Notch | Dual | NA |
196479 | 0.5 | Front Flip | 1.5 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Dual | NA |
196490 | 1 | Front Flip | 1 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Single | NA |
196294 | 0.5 | Front Flip | 0.9 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Single | NA |
196200 | 0.3 | Front Flip | 1 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Single | NA |
196439 | 0.3 | Back Flip | 0.9 | Top-Mount | Right Angle | Top/ Bottom | SMT | Without | Without/External Prominence | Single | NA |
196533 | 0.3 | Back Flip | 0.9 | Top-Mount | Right Angle | Top/ Bottom | SMT | Without | Without/External Prominence | Single | NA |
196508 | 1 | Back Flip | 2.7 | Top-Mount | Right Angle | Bottom | SMT | Without | Inner Notch | Single | NA |
196047 | 1 | Front Flip | 2 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Single | NA |
196503 | 1 | Front Flip | 1.75 | Top-Mount | Right Angle | Bottom | SMT | Without | Without/External Prominence | Single | NA |
196087 | 1 | Front Flip | 1.5 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Single | NA |
196356 | 0.5 | Back Flip | 2.5 | Top-Mount | Right Angle | Bottom | SMT | With | Inner Notch | Single | NA |
196532 | 0.5 | Back Flip | 2 | Top-Mount | Right Angle | Top/ Bottom | SMT | Without | Without | Dual | NA |
196433 | 0.5 | Back Flip | 1.8 | Top-Mount | Right Angle | Bottom | SMT | Without | Inner Notch | Dual | NA |
196652 | 0.5 | Back Flip | 1.6 | Top-Mount | Right Angle | Bottom | SMT | Without | External Prominence | Dual | NA |
196357 | 0.5 | Back Flip | 1.2 | Top-Mount | Right Angle | Top/ Bottom | SMT | Without | Inner Notch | Single | NA |
196070 | 0.5 | Front Flip | 2.2 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Single | NA |
196528 | 0.8 | Back Flip | 1.5 | Top-Mount | Right Angle | Top/ Bottom | SMT | Without | Inner Notch | Dual | NA |
196579 | 0.8 | Front Flip | 1.2 | Top-Mount | Right Angle | Bottom | SMT | Without | Inner Notch | Single | NA |
196415-XX-36 | 0.5 | Front Flip | 1.75 | Top-Mount | Right Angle | Bottom | SMT | Without | Without/External Prominence | Single | Available |
196588 | 0.5 | Front Flip | 2.5 | Top-Mount | Right Angle | Bottom | SMT | Without | Inner Notch | Dual | Available |
196598 | 0.5 | Front Flip | 2.5 | Top-Mount | Right Angle | Bottom | SMT | With | External Prominence | Single | Available |
196542 | 0.5 | Front Flip | 2.55 | Top-Mount | Right Angle | Bottom | SMT | Without | Without/External Prominence | Dual | Available |
196541 | 1 | Front Flip | 2 | Top-Mount | Right Angle | Bottom | SMT | Without | Without | Dual | Available |
196564 | 1 | Draw | 5.5 | Top-Mount | Vertical | No Designated | SMT | Without | Inner Notch | Dual | Available |
-----------------------------------------------------------------------------------------------------
3、台湾P-TWO&P-TWO连接器|台湾禾昌兴业ZIF连接器 此产品销售商:
美金电子产品网-代理销售【台湾P-TWO连接器&P-TWO|台湾禾昌兴业ZIF连接器.】以及第2项内容中表格清单内的所有(料号/型号)连接器产品;如果您想购买或了解我们可提供哪些连接器|线束|线缆产品解决方案,欢迎通过下面方式联系我们.
